Single Stage Cutaway

Mon Jan 21, 2008 6:50 pm

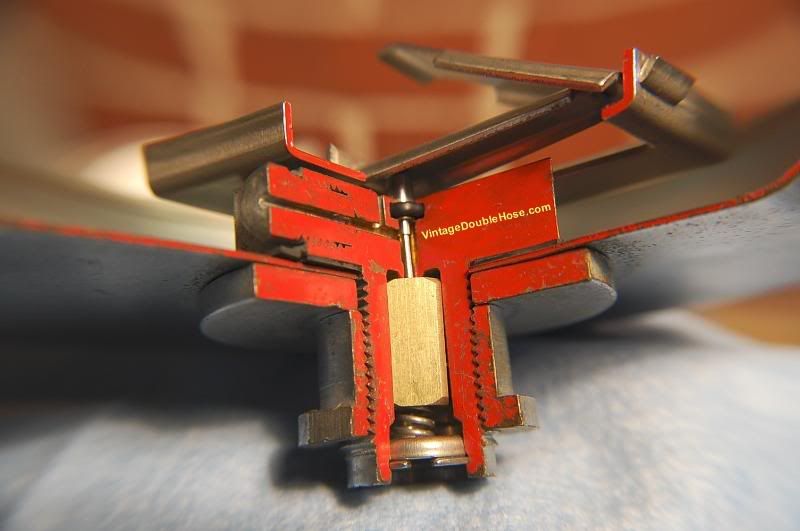

Here is the link to some shots of the single stage cutaway regulator I acquired from E-bay recently. Makes it super easy to see how it works! This one is a Stream Air but other than the nozzle the Overpressure and Mistral are exactly the same. I left the pictures in large format so you can zoom in on a particular section if you need to see it up close.
CLICK HERE FOR ALBUM
Doing it right should include some common sense, not just blindly following specs and instructions. .Gary D, AWAP on SB
User avatar
luis
VDH Moderator
Posts: 1751
Joined: Thu Jun 30, 2005 9:28 pm
First Name: Luis
Location: Maine

Mon Jan 21, 2008 7:04 pm

Thanks Bryan. This is great.
Luis

Buceador con escafandra autónoma clásica.
User avatar
Greg Barlow
VDH Moderator
Posts: 525
Joined: Wed Jul 20, 2005 1:26 pm
First Name: Greg
Location: SW Ohio

Mon Jan 21, 2008 8:20 pm

That is too cool!

Greg
Greg Barlow
PADI Assistant Instructor
TDI Adv. EAN
TDI Decompression Procedures
IANTD Full Cave
NSS/CDS Full Cave
crimediver
Master Diver
Posts: 412
Joined: Tue Jul 12, 2005 7:38 am
Location: Richmond, Va

Mon Jan 21, 2008 8:47 pm

I was watching that auction and hoped you would win those regs. Thanks for the looksee. Pretty neat. Very simple design.
User avatar
1969ivan1
Plank Owner
Posts: 1657
Joined: Sat Jun 25, 2005 12:15 pm
First Name: rob
Location: CINCINNATI, OHIO

Mon Jan 21, 2008 9:02 pm

That is fantastic. Thanks for taking the time to post this stuff for us to digest.
swimjim
Master Diver
Posts: 1710
Joined: Thu Mar 23, 2006 12:28 am
First Name: Jim
Location: Belgium WI

Tue Jan 22, 2008 12:58 am

That's awesome Bryan! :shock: Thanks for sharing that. Perhaps you could bring those to SDV. I'd like to see those in person. Thanks again.

Jim
standingup

Tue Jan 22, 2008 11:04 am

Great shots THANK YOU -- I see by the shot numbers that you took several shots to get the perfect results. As always you put in the extra effort required to maintain high standards.
User avatar
capn_tucker
Master Diver
Posts: 707
Joined: Mon Jan 15, 2007 9:04 am
Location: Southeast GA

Tue Jan 22, 2008 11:05 am

Coolness! My Voit VR-1 innards are identical to this one; this photo is a keeper.. :)
Quick Robin, to the Voitmobile!
