New tool for the evening

Mon Mar 21, 2011 1:43 am

So, while I really do prefer the military-style harness on my doubles, I will admit to being a plastic backpack guy for my singles.

I have tried them all and own at least one of most of them now, as I like to just keep a dedicated one on my tanks. My hands down favorite is the USD from the mid-70’s with the stripe on the straps, mostly because it is well made and the straps seem to come in factory big-boy size! :D

Of the several methods they had available to tighten the tank band, I think the simple wing-nuts on both ends of the bands is the simplest and most secure, but those last several turns on those little nuts, with my big fat fingers, is tough to grip and yes I will admit, hurts.

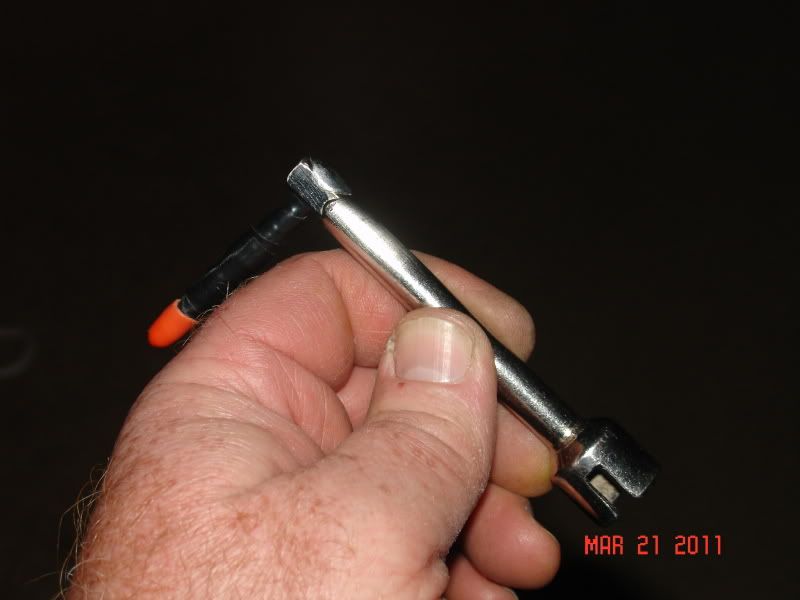

So I made this here, and it has improved my wing-nut torquing 1000%.

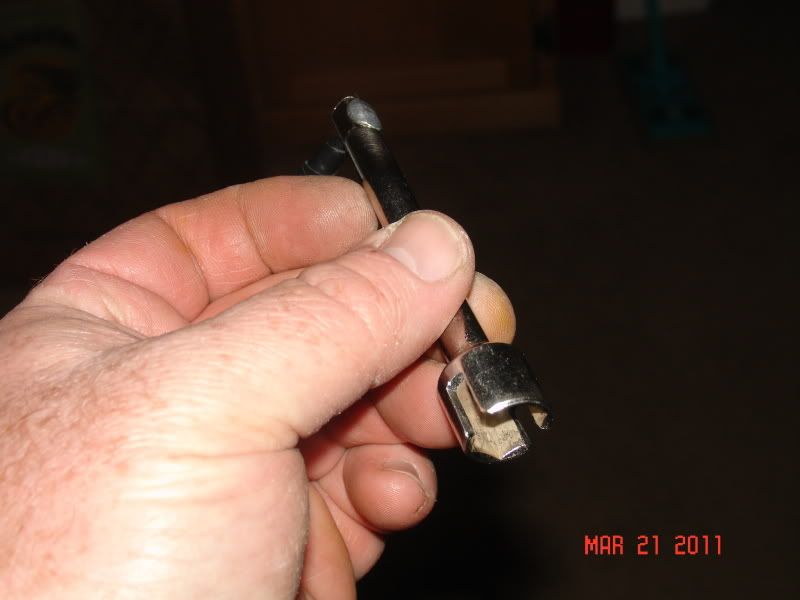

I started with a ½” nut driver that cost .50 c at the local pawnshop and had a split plastic handle. If I had gone $2.00, I could have got a good handled one, but then my tool would be only half as custom. :wink: I cut two 3/16” slots in the socket to the bottom and filed them just a touch to clean up, then drilled an 1/8” hole in the other end to accept a 2” roofing nail. Cut the point off the nail, peened the head to a nice contour, put some tape on it, finished beer and admired my handiwork.

Alright…, I’m no tool & die maker, but it cost .50c, took 20 minutes and 1 beer to make, and is going to be very very useful. I’ve got tight bands and happy fingertips, and just thought I’d share. :D
Freddo
NAVED member #201

User avatar
Herman
VDH Moderator
Posts: 1317
Joined: Thu Oct 25, 2007 1:45 pm
Location: Raleigh NC

Re: New tool for the evening

Mon Mar 21, 2011 6:20 am

Nice idea. I like simple homebrew solutions to problems. Normally dislike poor quality tools but I have found that this is one place cheap tools are actually better. Being made of poorer quality steel (?) they are a lot easier to cut/drill/file. If it was going to be some kind of high use tool it would be worth the effort to customize a higher quality tool but for things like this the cheap ones are the way to go.
Herman

User avatar
8dust
Master Diver
Posts: 555
Joined: Wed Aug 05, 2009 11:39 am
Location: Nashville's North Shore

Re: New tool for the evening

Mon Mar 21, 2011 9:34 pm

Thanks Herman. :)

I'd really like to see some of the other jigs / tools / parts, that other folks have made.
Freddo
NAVED member #201
